PA-250

Frequency Range: 3.8-30MHz Input

VSWR: 1.5 to 1 or less

Amplifier Gain: 14dB minimum

Operating Temerature: 0-37.8C (32-100F)

IMD: - 3.3dB

Harmonic Suppression: Better than -50dB 5Pole Chesbyshev filter

Pre Amplifier Gain: 10dB

DC Pwer Requierement: 13.6VDC @ 20Amps

Electronic Attenautor, 3 Stage:

    Low -30% ratet output

    Medium -50% ratet output

    high -100% ratet output

Modes: AM, FM, SSB, CW Fuly automatic mode switching

Input: 500mW - 5 Watts average

15 Watts PEP Output power raiting: MRF 455- 100 average 175 PEP
2SC2290- 110 avarage 210 PEP
2SC2879- 110 average 250 PEP

Dimernsions: Legth 6 1/4 inches (15.88cm) Width 6 inches (15.25cm) Height 2 1/2 inches (6.35 cm)

Weight: 2 1/2 lb (1.1Kg)

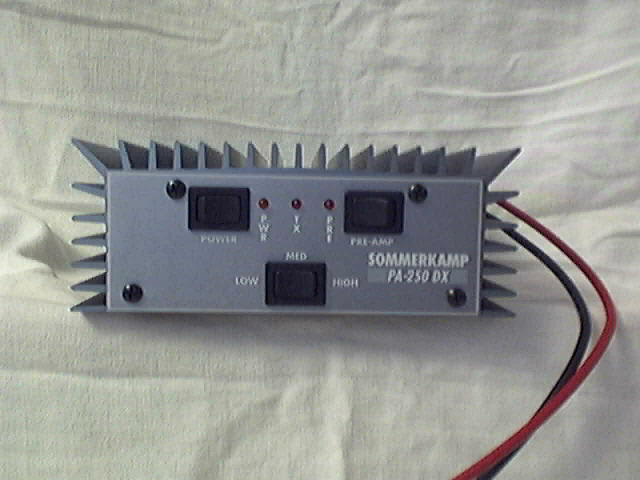

PA250_front_

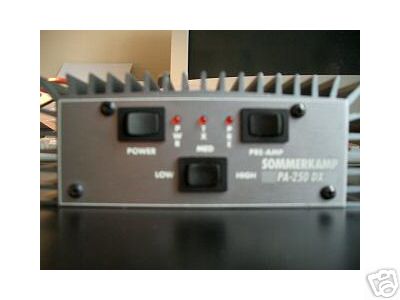

PA-250DX

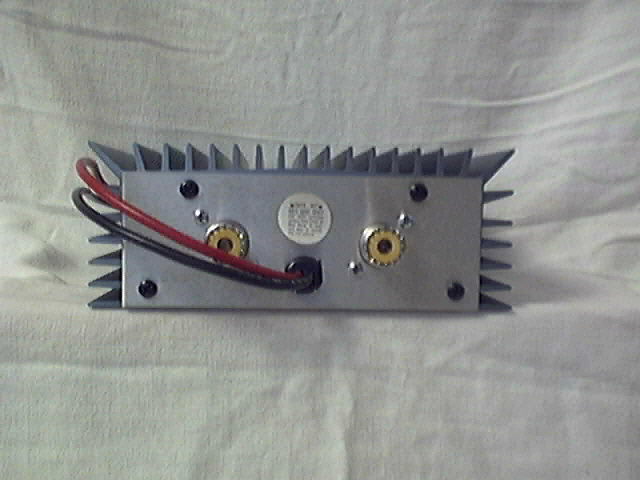

PA250_rear_
